牵引设备 Haul-Off Equipment

牵引设备：挤出成型的“稳定引擎”

Haul-Off Equipment: The "Stability Engine" of Extrusion

在PMMA/PC光学级线性灯罩的连续挤出过程中，牵引设备承担着“稳定输出、精准定型”的关键角色。它通过恒定的拉力将高温塑化的型材从模具中平稳拉出，并送入定型冷却系统，直接影响产品的尺寸精度、直线度与表面质量。

In the continuous extrusion of optical-grade PMMA/PC linear light diffusers, the haul-off equipment plays a critical role in "stable output and precise shaping." It pulls the molten profile smoothly from the die at a constant speed and feeds it into the cooling system, directly affecting dimensional accuracy, straightness, and surface quality.

宝铭光学采用高性能双履带牵引系统，结合智能张力控制技术，确保每一段灯罩在牵引过程中无拉伸变形、无表面损伤、无尺寸波动。

Baoming Optical employs high-performance dual-belt haul-off systems integrated with intelligent tension control, ensuring every section of the diffuser is pulled without stretching, surface damage, or dimensional variation.

核心技术特点

Key Technical Features

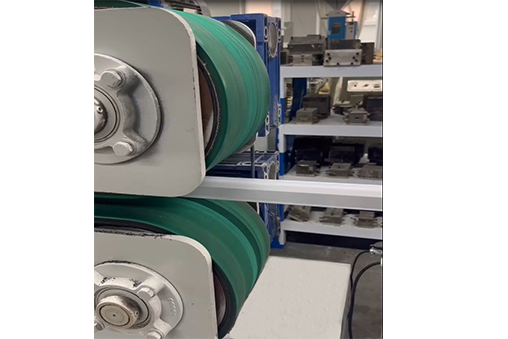

🔹 双履带恒张力控制
采用上下双履带夹持，压力均匀可调，适用于不同厚度（0.5–5mm）的PMMA/PC型材，确保牵引力稳定，避免型材变形。
Dual-Belt Constant Tension Control
Upper and lower belts provide uniform, adjustable pressure, suitable for various PMMA/PC profile thicknesses (0.5–5mm), ensuring stable pull force and preventing deformation.

🔹 无级调速，精准同步
伺服电机驱动，速度范围0.1–6m/min，与挤出主机实时同步，避免“过拉”或“堆积”，确保挤出线速度一致性。
Stepless Speed Control & Precision Sync
Servo-driven system with speed range of 0.1–6m/min, synchronized in real-time with the extruder to prevent over-pulling or material buildup.

🔹 表面保护设计
履带采用高弹性硅胶或聚氨酯材质，软接触型材表面，有效防止划伤、压痕，特别适用于高光或压花纹理产品。
Surface Protection Design
Belts made of high-elasticity silicone or polyurethane provide soft contact, preventing scratches and marks—ideal for high-gloss or embossed surfaces.

🔹 自动纠偏与中心对齐
配备光电传感器与自动调节机构，实时纠正型材偏移，确保牵引路径居中，提升后续切割精度。
Auto-Alignment & Centering
Equipped with photoelectric sensors and auto-adjustment mechanisms to correct profile misalignment in real-time, ensuring centered pulling and improved cutting accuracy.

🔹 模块化设计，快速换型
支持快速更换履带宽度与夹持模块，适应T5、T8、U型、异形等多种灯罩规格，提升生产灵活性。
Modular Design for Fast Changeover
Quick-change belt widths and clamping modules support T5, T8, U-shape, and custom profiles, enhancing production flexibility.

为什么牵引设备至关重要？

Why Is the Haul-Off System So Critical?

✅ 决定尺寸稳定性：牵引速度波动会导致型材厚度不均，影响透光一致性。
Ensures Dimensional Stability: Speed fluctuations cause uneven thickness, affecting light transmission uniformity.

✅ 保护表面光学性能：硬接触或压力不均易造成划伤、雾化，破坏压花/棱镜结构。
Protects Surface Optical Performance: Hard contact or uneven pressure can scratch or haze the surface, damaging embossed/prismatic structures.

✅ 支持高速连续生产：稳定牵引是实现6m/min以上高速挤出的基础保障。
Enables High-Speed Production: Stable haul-off is essential for high-speed extrusion above 6m/min.

应用场景

Applications

• LED线性灯罩（T5/T8/U型）连续牵引
  Continuous haul-off for LED linear diffusers (T5/T8/U-shape)
• 植物照明高透光导光板稳定拉出
  Stable pulling of high-transmission light guides for plant lighting
• 轨道交通V0阻燃灯罩无损牵引
  Non-damaging haul-off for V0 flame-retardant rail transit diffusers
• 异形/薄壁型材低变形牵引
  Low-deformation pulling for custom or thin-wall profiles

在宝铭光学的25条智能挤出生产线中，每一套牵引设备都经过精密校准与长期验证，与模具、挤出机、冷却定型系统高度协同，构成光学级挤出制造闭环。我们不仅关注“能拉出来”，更追求“拉得稳、拉得准、拉得美”。
In Baoming Optical's  25 intelligent extrusion lines, every haul-off system is precisely calibrated and field-tested, working in harmony with dies, extruders, and cooling systems to form a closed-loop optical-grade manufacturing process. We don't  just focus on “pulling it out”—we strive for stability, precision, and perfection.
